Fully Automatic Laser Welt Pocket Machine TS-995-A

Short Description:

This type of automatic laser welt pocket machine is most advanced machine. China first, world first. Different pocket sizes do not require mold replacement. All the parts related to pocket sizes are controlled by the motor and do not need mechanical adjustment. Saved the mold costs of the clothing factory and greatly improved the production efficiency.


Product Detail

Product Tags

Video

Advantages

1, This type of automatic laser welt pocket machine is most advanced machine. China first, world first.

2, All the parts related to pocket sizes are controlled by the motor and do not need mechanical adjustment. Different pocket sizes do not require mold replacement.

3, This type of laser welt pocket machine can welt, fold, sew and bartack pocket in one time,  also welt with zipper. It can complate a whole pocket one time.

4, The pocket welting machine could be one time sewing or two times sewing according to customer's requirement. It could be switched freely between one and two times sewing only by changing the pattern.

5, High efficiency: when one time sewing, the speed is 150-180 pcs/hour. When two times sewing, the speed is 120 pcs/hour. If workers can operate the machine skillfully, the production capacity could be more.

6. The pocket welting machine is suitable for any kind of exterior pocket and most of woven fabric and knitted fabric. For the pocket shape,  such as single lip pocket, single lip pocket with zipper, double lip pocket, double lip pocket with zipper, pocket with flap, zipper pocket, zipper pocket with cover.  For the pocket fabric, such as casual pants, work clothes, sports wear, jacket down,  leather and polyester etc. In other words, the laser pocket welting machine is suitable for light fabric, middle fabric and heavy fabric.

7. The pocket welting machine can save 8 workers, it saves labor cost for garment factory greatly, most important it won't need workers with experience. Meantime the products are more perfect than them made by worker.

8. The folding system of the machine is updated, which makes the work more stable. The upgrade of the electronic control system makes the sewing efficiency faster.

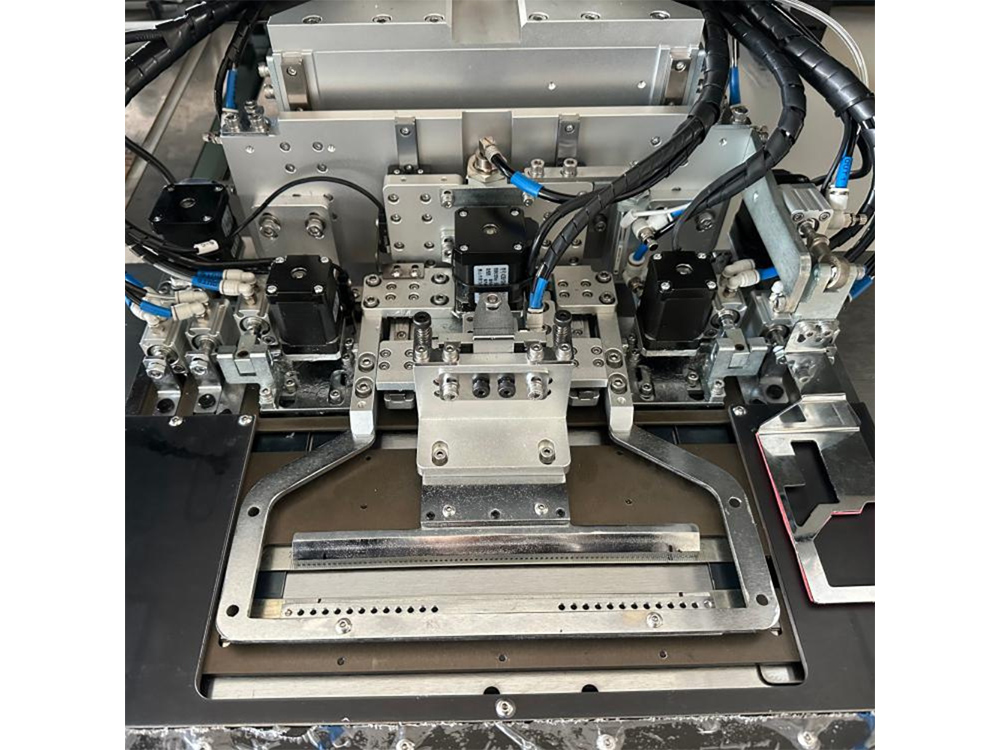

pocket-welting-4

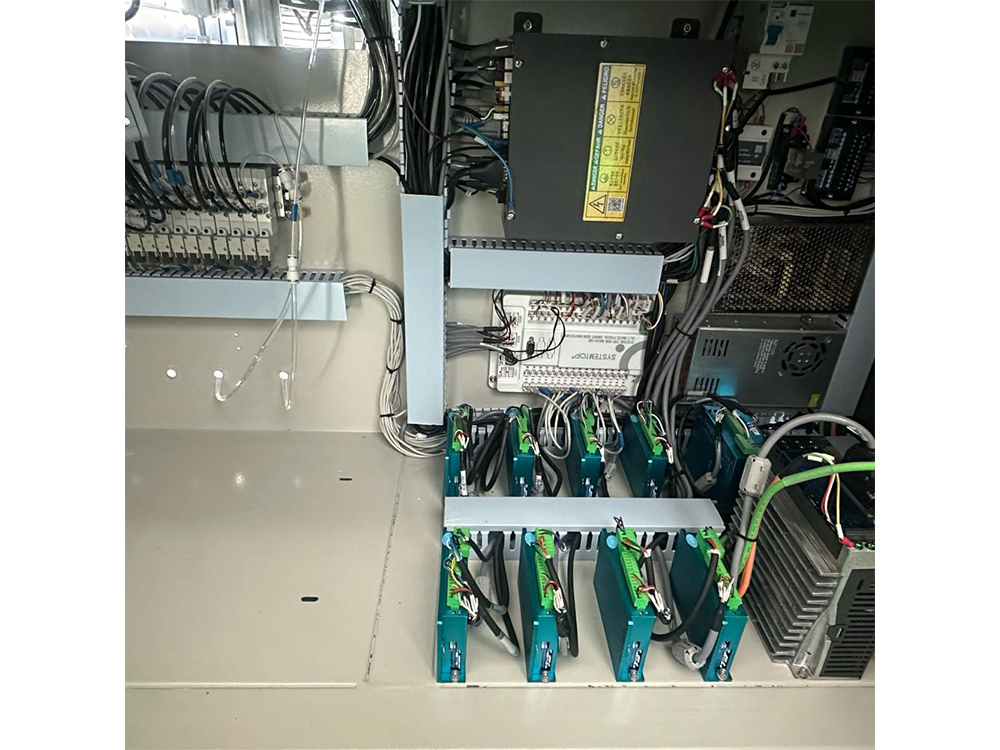

pocket-welting-5
pocket-welting-6
pocket-welting-7

Specifications

maximum sewing speed 3000RPM
Equipped machine head pattern sewing machine 3020, optional BROTHER
pocket range Length: 100mm-220mm, Width:10mm-40mm.
Speed of sewing pockets one time sewing: 150pcs/hour, two times sewing: 120pcs/hour.
Laser power 100W
Output power 3000W
Power Supply AC220V
Pneumatic element AirTAC
Feeding Drive Mode Taiwan DELTA servo motor drive (750w)
Air Pressure and Air Consumption 0.6Mpa(6kg/cm2)、160dm3/min
Package dimension 1900mmX1300mmX1600mm
Weight Net weight:800KG Gross weight:900Kg
