Automatic Coin Pocket setting machine TS-299-BD

Short Description:

This type of Automatic coin pocket setting machine also called watch pocket machine. It was equipped with full servo drive, fast speed, lower noise, stable performance and good product effect. One worker can operate two set coin pocket setting machines, The Coin Pocket setting machine could make 10 pockets one minute. This coin pocket setting machine is specially for mini pocket and small pocket. Widely used in jeans and casual pants.


Product Detail

Product Tags

Video

Advantages

I, This watch pocket machine equipped with quick change mold. it only need one minute to change the mold, and the cost of mold is cheap.

2, This coin pocket machine has full servo drive. fast speed, lower noise, stable performance and good product effect.

3,The watch pocket could be different shapes: such as round, square, triangle etc.

4,It can work on different thickness fabric: such as jeans and casual

5, This coin pocket setting machine is specially for mini pocket and small pocket. Widely used in jeans and casual pants

6, High efficiency, one worker can operate two set coin pocket setting machines, it could be 10 pockets one minute

7, This watch pocket machine equipped with Mitsubishi machine head, economical and affordable.

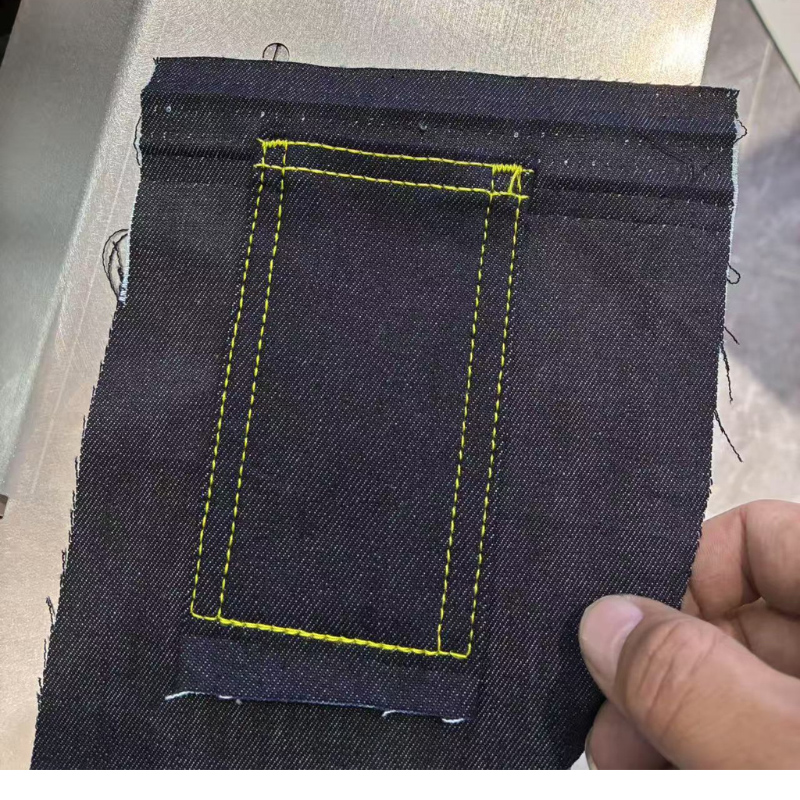

Coin-Pocket-machine-8

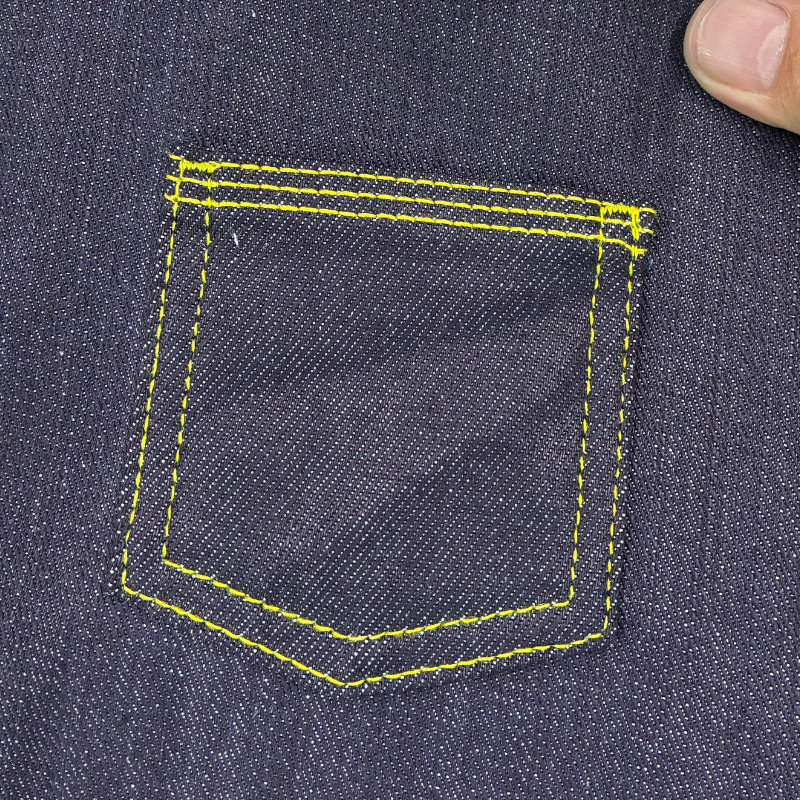

Coin-Pocket-machine-9

Specifications

Highest sewing speed 3000RPM
Speed of sewing pockets 6-10 pockets per minute
Equipped with head Mitsubishi pattern machine head, Optional Brother or JUKI
Sewing Max Range X direction 120mm, Y direction 100mm
Power supply single-phase 220V
Dimension 1190mm*1190mm*1530mm
Weight 365Kg
