Velcro Attaching Machine Integrated Hook And Loop TS-2210-VC-D

Short Description:

This type of velcro attaching machine is suitable for sending hook-and-loop velcro with a width of less than 5 cm. The hook-and-loop velcro speed is fast, and it can continuously feed the hook-and-loop velcro, allowing for the completion of the product in one sewing process, avoiding the accumulation of semi-finished products and the need for re-feeding and sewing, thereby improving efficiency greatly.


Product Detail

Product Tags

Video

Advantages

1, High efficiency: This type of velcro attaching machine can attach 15pcs velcro per minute.

2, The hooks and loops of the Velcro can be switched and sewn together simultaneously on one machine.

3, The conversion speed between hook and loop is fast, and it can perform continuous hook-and -loop feeding. One-time sewing of the product avoids the accumulation of semi-finished products and the need for secondary loading and sewing, thereby improving production efficiency.

4, By changing the cutting die, it can achieve right-angle, round-corner, and special-shaped angle cutting and feeding.

5, The velcro attaching machine is easy to adjust, and the hook-and-loop velcro is not easy to fall out of the feeding slot, ensuring good stability.

6, With the industry's first patented design template, the width error of the Velcro does not need to be adjusted. The template feeding is more stable, the sitches are beautiful, and the process of cutting, feeding, and sewing the Velcro can be completed in one step. The operator only needs to place the fabric and can easily sew it!

7, The velcro attaching machine is widely used in factories for reflective clothing, protective clothing, bags, clothing, outdoor products, tents, etc.

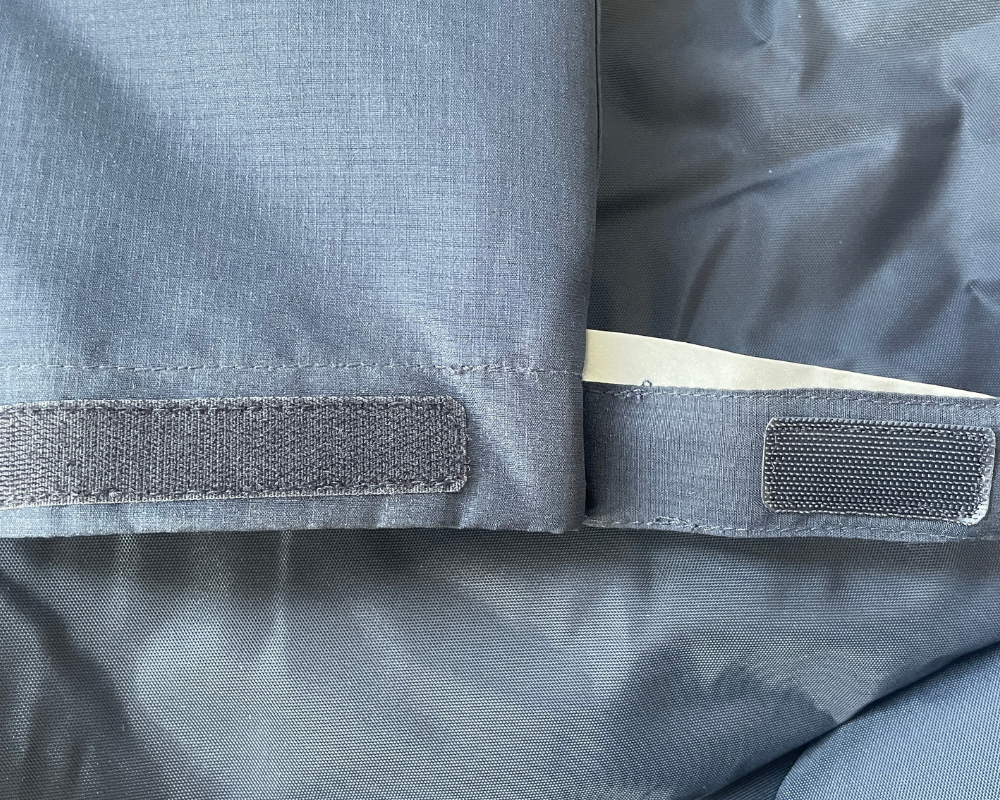

Velcro-1

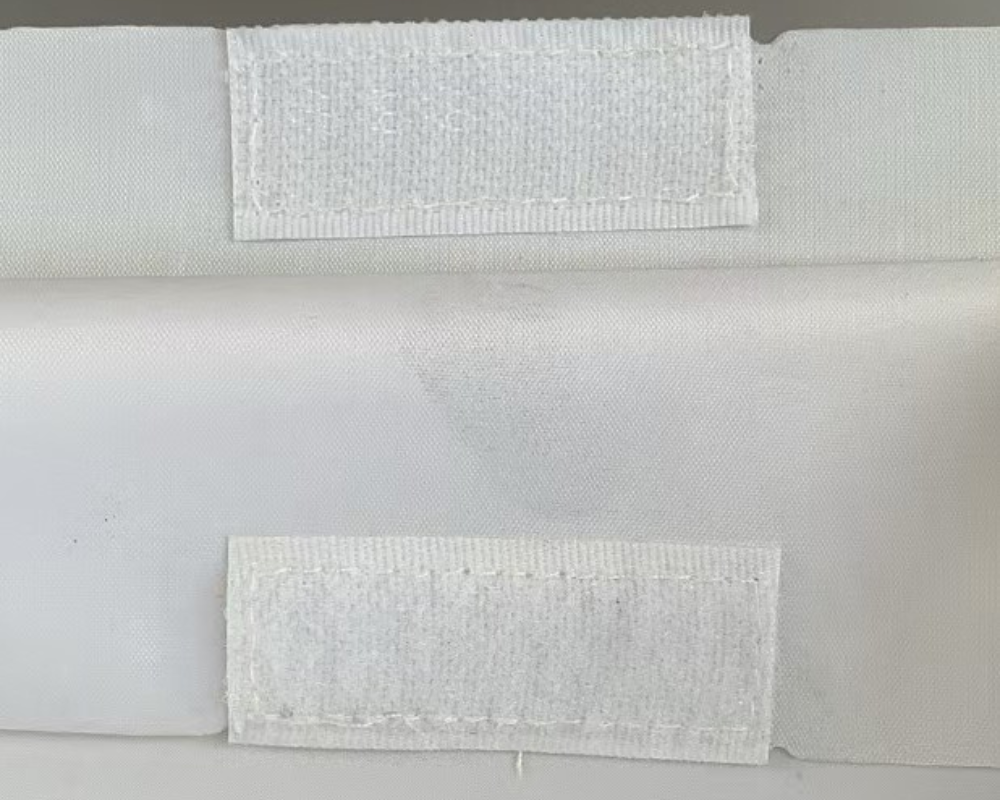

Velcro-2

Specifications

Sewing Range 150mm*50mm
Feeding Length Circular knife:20-150mm, Straight knife:15-150mm
Feeding Width 10-50mm
Feeding Speed 1 pcs velcro per minute
Knife Mold Right angle, Round angle, Irregular angle, etc.
Standard Air Pressure 400kpa (4kgf/cm)
Power Supply and Power Single phase 220v / 750W
Machine packing sizes 150cm*90cm*132cm
Machine packing weight 250Kgs
